Product Description

SE V2 QPG Low Noise Linear Power Supply - 3A max.

The SE V2 QPG is our middle of the range psu and offers a very low noise voltage output. Utilizing the technology in our other psus we have managed to create something that works brilliantly with higher end audio equipment on the market. The SE can be upgraded to Reference or Signature spec by purchasing our Vref module (s).

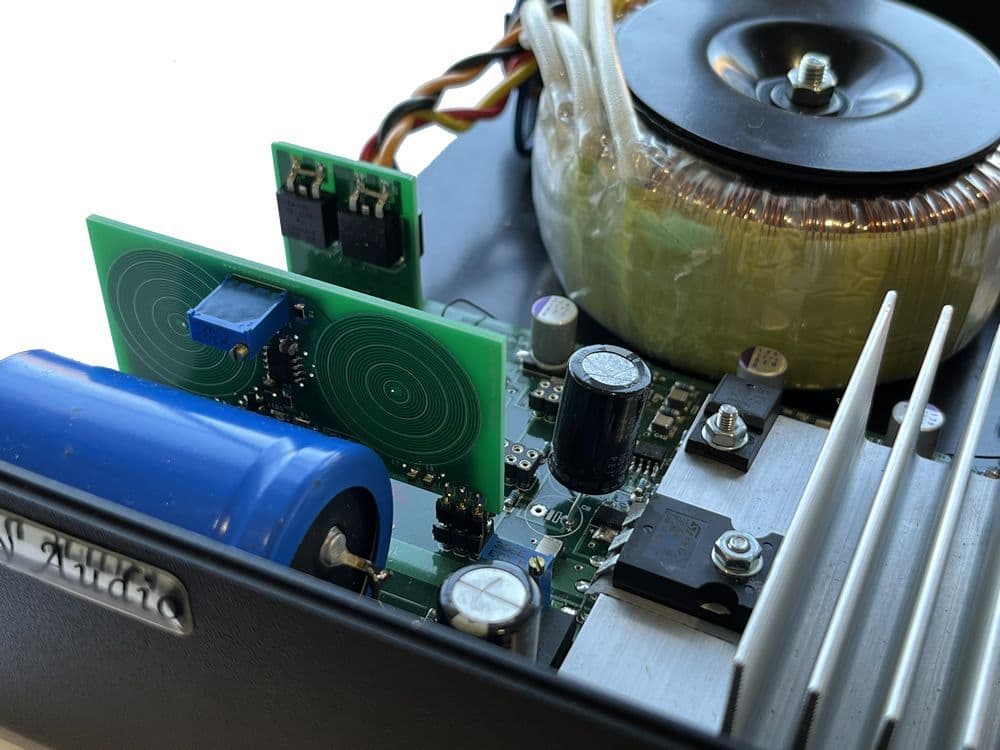

From the large transformer and big smoothing capacitors chosen for their low ESR and ripple rejection to the multiple precise vref circuits, QPG technology and onto the ABT monitored low noise output this PSU really does stand head and shoulders above anything out in the market today in both design and performance. You wont find this level of quality PSU in anything manufactured at the high end of the audio market.

Please enquire about different voltages and connectors



SE V2 Psu specs -

  • BR1 Schottky Bridge Rectifier
  • QPG Noise cancellation circuit
  • Active Noise Cancellation
  • Very low noise SPower drive circuit
  • Very low noise 6 stage Vref for drive circuit
  • Oscon SVP Capacitors used for precise Vref control
  • Large High Quality Mundorf / F&T Capacitors
  • High Quality Cerefine and Rubycon Capacitors (model specific)
  • Optimised circuit layout
  • 120VA Toroidal Transformer (9V & 12V outputs)
  • 80VA Toroidal Transformer (5V & 6V outputs)
  • 3.6A Current capable
  • 10A Current Max @12V (short term current)
  • Output protection / monitoring circuit (ABT)

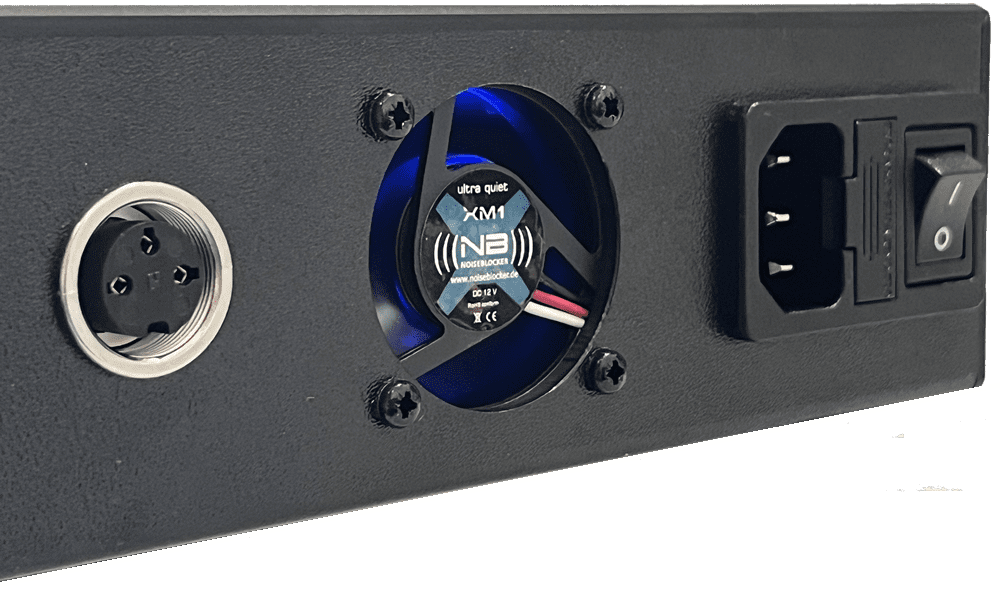

  • Vented chassis and fan control circuit - Optional
  • Noiseblocker BlackSilent Fan X (Max 2800 rpm - 9.2 dB(A)​​​ ​​​​​​)

All our DC power supplies utilise a custom designed Fidelity Audio SPower low noise voltage regulator circuit along with improved circuit design and high quality Mundorf AG capacitors and toroidal transformers all housed in a quality Gloss Black ABS chassis with EMI / RFI coating on the inside. Audio Wire 1TP silver plated copper cable is used between PSU and your device as well as internally.

Expect -
  • Analogue presentation
  • Inky Blacks
  • Much more insight into recordings
  • Delicate Treble
  • Full Bass with more definition


Specifications

MPN
SE V2 QPG PSU
Brand
fidelity audio
Condition
New
Product Code
Fidelity Audio SE V2 QPG PSU
Weight
3kg
