Reavon UBR-X100 Reference Power Supply for DIY install

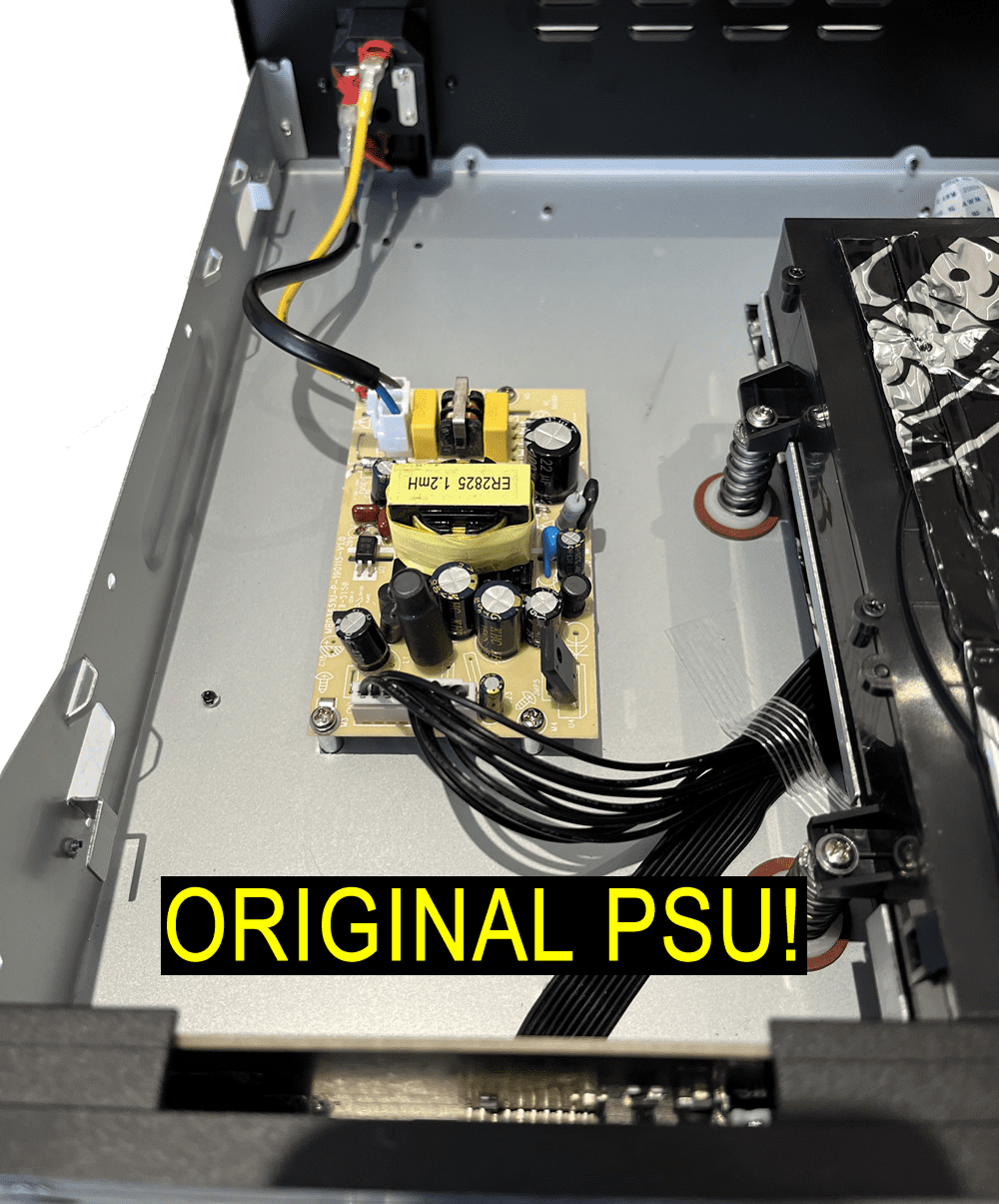

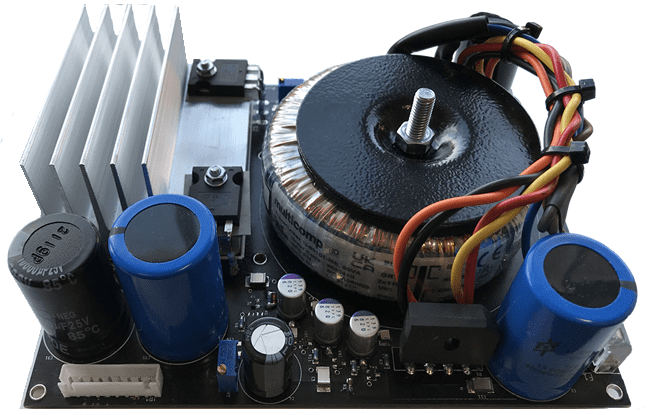

This pcb is designed to replace the cheap and noisy SMPS PSU in the Reavon UBR-X100.

Only Fidelity Audio design and build true low noise PSUs.


• Custom Dual SPower Reference derived very low noise voltage regulation
• Fully Regulated PSU
• Triple Vref voltage control on 5v output
• Dual Vref voltage control on 12v output
• Oscon SEPC capacitors
• F&T SI decoupling capacitor (Pre Regulation 5v)
• F&T SI decoupling capacitors (Post Regulation 5v)
• SLPX decoupling capacitor (Pre Regulation 12v)
• SLPX decoupling capacitors (Post Regulation 12v)
• Panasonic PPS decoupling capacitors used throughout
• Optimised circuit layout
• 4A Current capable
• 6.67A Current Max @ 5V (short term current)

DISCLAIMER - We take no responsibility for damage to your Reavon with a DIY installation.

This PSU cannot damage your Reavon. The Reavon has further regulation after the PSU. From extensive testing only bad installation can damage your Reavon. Check all cables between pcbs are aligned correctly.

Disclaimer - We take every step to make sure our products are built to the highest standard and specification.
Do-It-Yourself (DIY) projects and all DIY projects are purely “at your own risk”. As with any DIY project, unfamiliarity with the tools and process can be dangerous.
If you are at all uncomfortable or inexperienced working on these projects (especially but not limited to electronics and mechanical), please reconsider doing the job yourself. It is very possible on any DIY project to damage your equipment if not properly installed.
