Cambridge Audio CXN100 (Lunar Grey) + Fidelity Audio Low Noise PSU Installed

We are offering a Cambridge Audio CXN100 (Lunar Grey)  pre installed with the Fidelity Audio Low Noise PSU Installed. Both analogue and digital out performance have been improved significantly.

Please see PSU listing here

What you get -

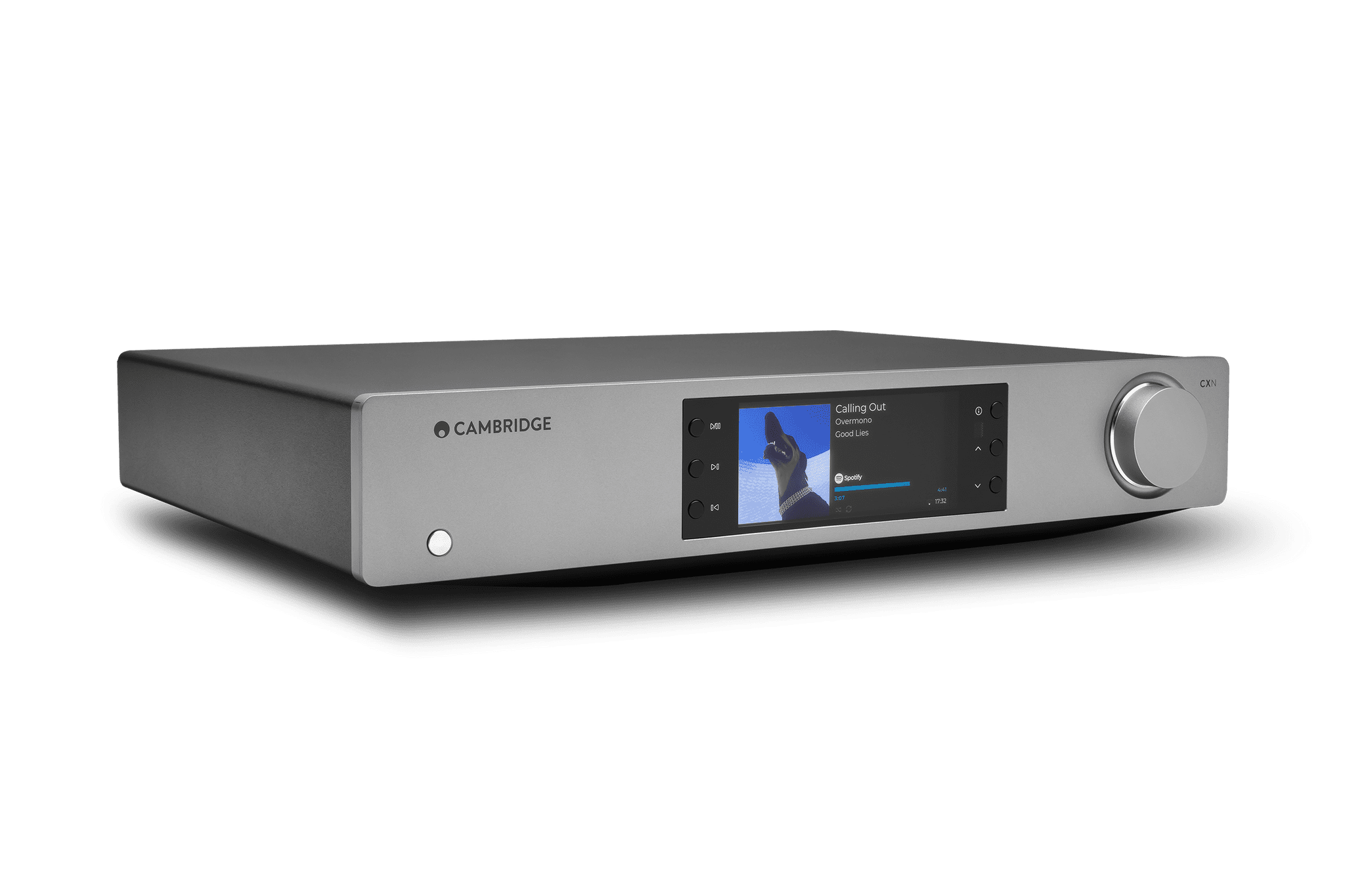

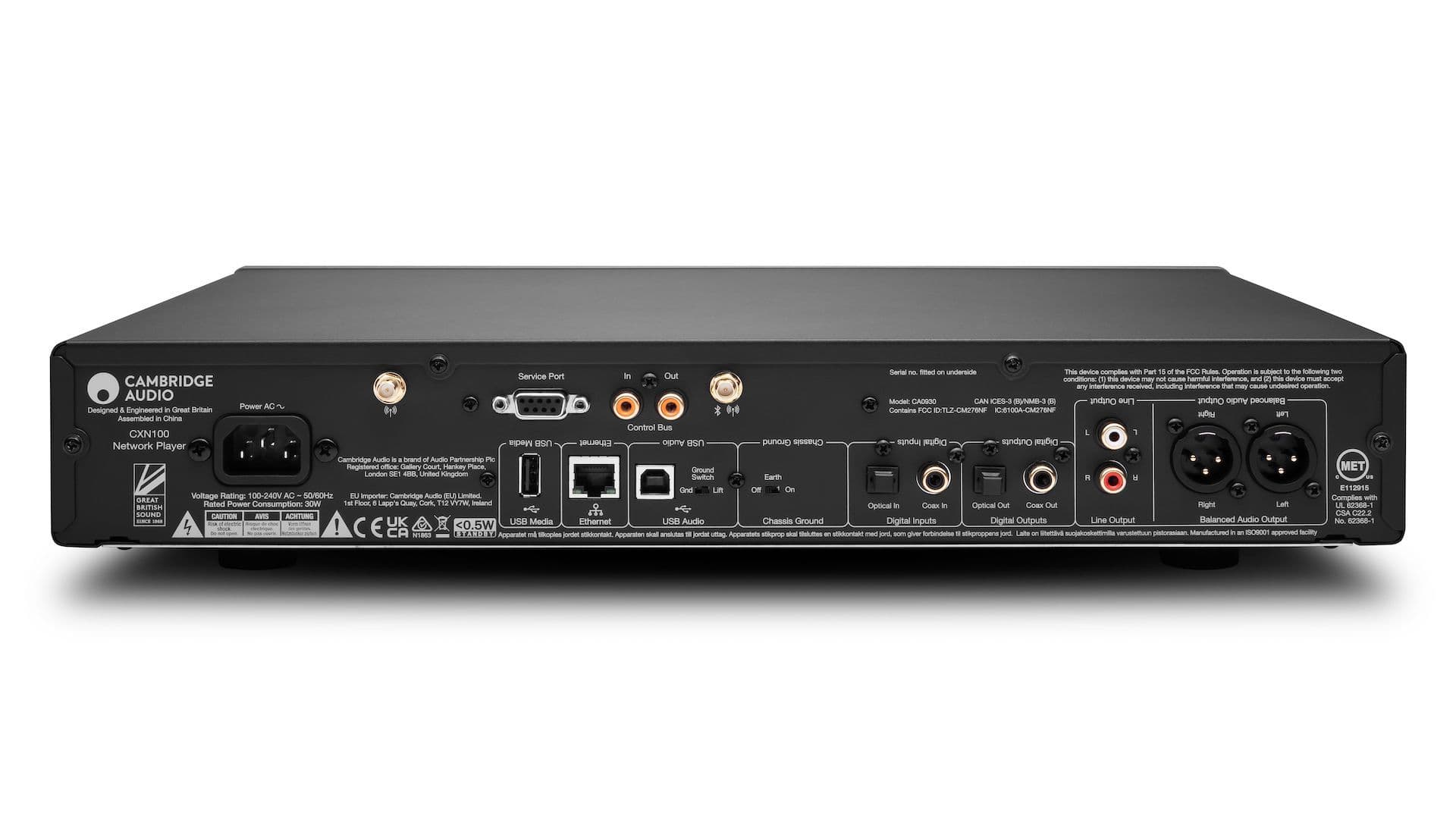

• Cambridge Audio CXN100 (Lunar Grey)
• Fidelity Audio Linear Low Noise PSU (installed)
• 230v ac
• RRP £1288

PSU Specification

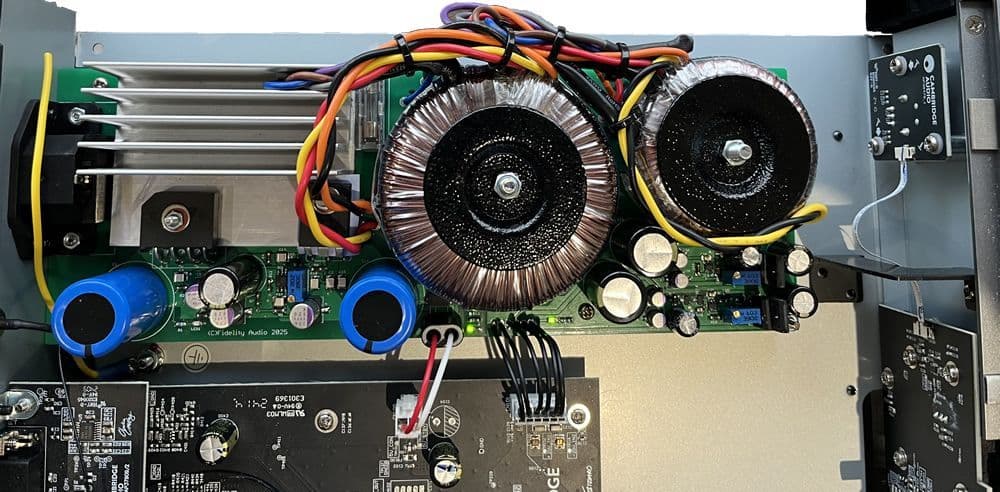

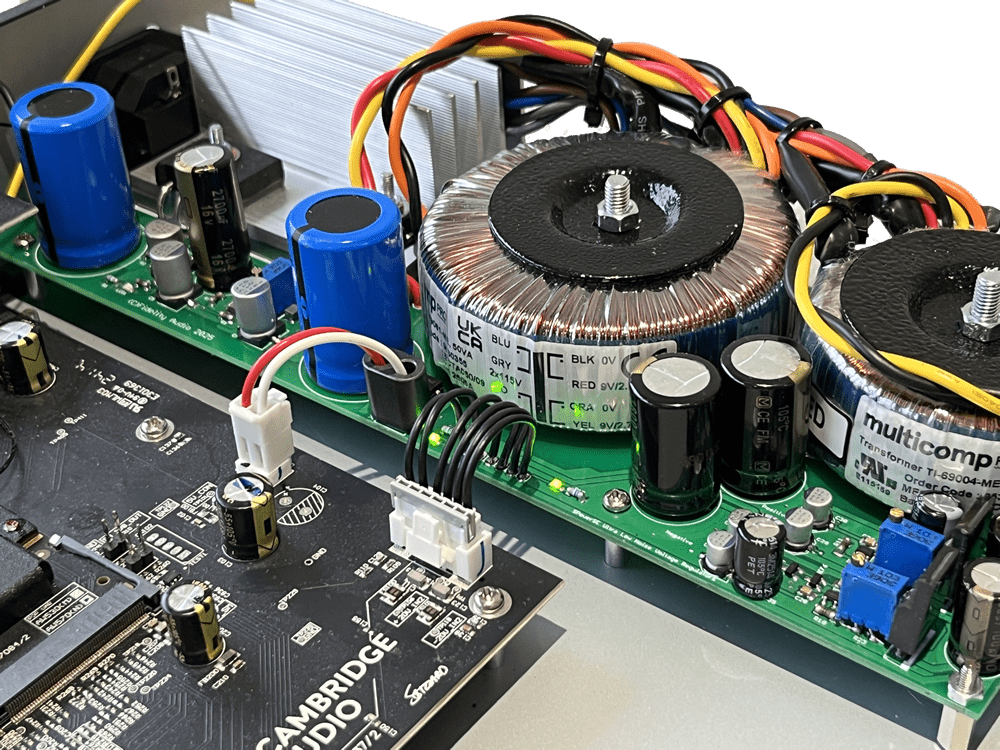

This pcb is designed to replace the cheap and noisy SMPS PSU in the Cambridge Audio CXN100  (see note).  This psu enables both digital and analogue outputs to function.

The only true low noise Cambridge Audio CXN100 PSU.

• Fully Regulated PSU
• Pre regulation circuit to lower noise even further
• Custom triple output very low noise PSU
• Triple Vref voltage control for 5v low noise pre regulation (digital psu)
• Dual Vref voltage control for +20v low noise pre regulation (analogue psu)
• Dual Vref voltage control for -20v low noise pre regulation (analogue psu)
• F&T SI decoupling capacitor (Pre Regulation 5v)
• F&T SI decoupling capacitors (Post Regulation 5v)
• 3x Oscon SVPE decoupling capacitors (5v vref)
• Panasonic FM decoupling capacitors (5v)
• Panasonic FM decoupling capacitors (Pre Regulation 12v)
• Cerafine decoupling capacitors (Post Regulation 12v)
• 4x Oscon SVPE decoupling capacitors (12v vref)
• Rubycon ZLH decoupling capacitor (12v)
• Panasonic PPS decoupling capacitors used throughout
• Optimised circuit layout
• 50VA Toroidal Transformer (digital psu) - 1x 3000mA
• 15VA Toroidal Transformer (analogue psu) - 2x 420mA
• Silver plated OFCC with Ferrite connecting cable (digital supply)
