Cambridge Audio CXN 100 Power Supply - Very low noise linear PSU
Cambridge Audio CXN 100 Power Supply - Very low noise linear PSU

Product Description

Cambridge Audio CXN 100 Power Supply - Very low noise linear PSU

For DIY Install or in house installation

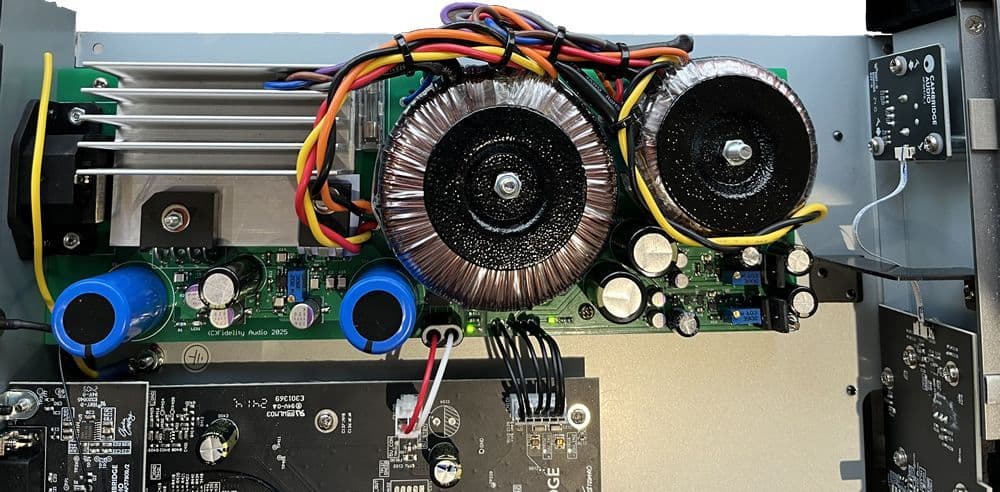

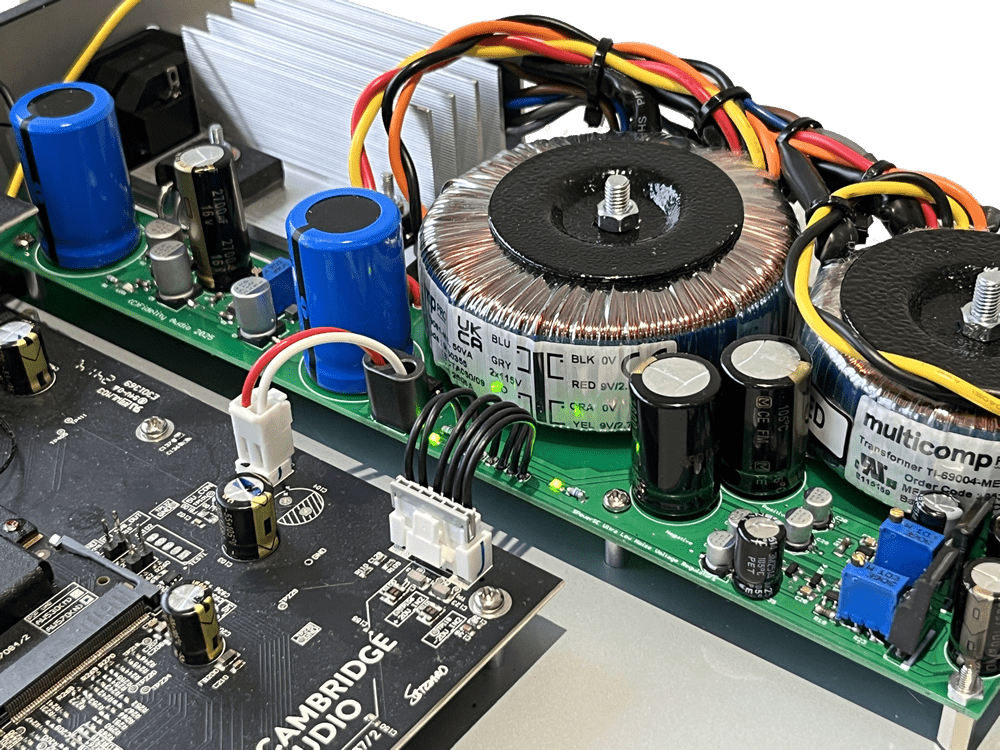

This pcb is designed to replace the cheap and noisy SMPS PSU in the Cambridge Audio CXN100  (see note).  This psu enables both digital and analogue outputs to function.

The only true low noise Cambridge Audio CXN100 PSU.

  • Fully Regulated PSU
  • Pre regulation circuit to lower noise even further
  • Custom triple output very low noise PSU
  • Triple Vref voltage control for 5v low noise pre regulation (digital psu)
  • Dual Vref voltage control for +20v low noise pre regulation (analogue psu)
  • Dual Vref voltage control for -20v low noise pre regulation (analogue psu)
  • F&T SI decoupling capacitor (Pre Regulation 5v)
  • F&T SI decoupling capacitors (Post Regulation 5v)
  • 3x Oscon SVPE decoupling capacitors (5v vref)
  • Panasonic FM decoupling capacitors (5v)
  • Panasonic FM decoupling capacitors (Pre Regulation 12v)
  • Cerafine decoupling capacitors (Post Regulation 12v)
  • 4x Oscon SVPE decoupling capacitors (12v vref)
  • Rubycon ZLH decoupling capacitor (12v)
  • Panasonic PPS decoupling capacitors used throughout
  • Optimised circuit layout
  • 50VA Toroidal Transformer (digital psu) - 1x 3000mA
  • 15VA Toroidal Transformer (analogue psu) - 2x 420mA
  • Silver plated OFCC with Ferrite connecting cable (digital supply)


DISCLAIMER - We take no responsibility for damage to your CXN100 with a DIY installation.

This PSU cannot damage your CXN100 as the CXN100 has further regulation after the PSU. From extensive testing only bad installation can damage your CXN100. Check all cables between pcbs are aligned correctly.

Disclaimer - We take every step to make sure our products are built to the highest standard and specification.
Do-It-Yourself (DIY) projects and all DIY projects are purely “at your own risk”. As with any DIY project, unfamiliarity with the tools and process can be dangerous.
If you are at all uncomfortable or inexperienced working on these projects (especially but not limited to electronics and mechanical), please reconsider doing the job yourself. It is very possible on any DIY project to damage your equipment if not properly installed.

Specifications

MPN
Cambridge Audio CXN 100 Power Supply - Very low noise linear PSU
Brand
cambridge audio
Condition
New
Product Code
Cambridge Audio CXN 100 Power Supply - Very low noise linear PSU
Weight
2kg
