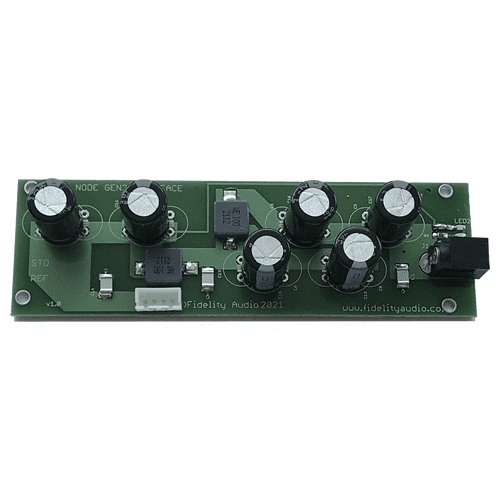

The Original Bluesound NODE N130 N131 N132 Interface PCB only (external PSU required)

Please note - we cannot guarantee optimal performance when you choose your own psu. We recommend a linear psu at the very least, the lower the noise the better.

PSU basic requirements -

• 5V DC
• 2A minimum (2000mA)
• DC Plug 5.5mm x 2.1mm
• Centre Pin Positive

Improve the performance of the Node with Fidelity Audio Interface pcb. You can upgrade to a higher spec psu at a later date while still using the interface.

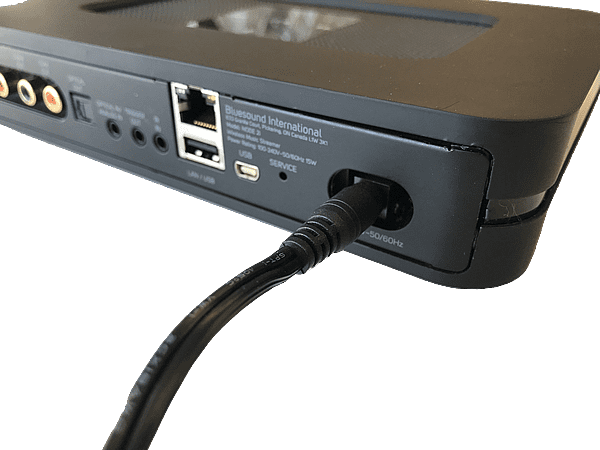

Removing the original noisy switch mode psu away from the delicate electronics inside the Node eliminates close proximity EMI pollution. Not only does that help performance the design and use of quality parts on the Interface raises the performance of the Node further.

Expect -

• Extended low bass frequencies
• Less midrange muddle
• Cleaner less harsh top end
• Fuller sound
• Option to upgrade later.

• Custom design for Node GEN 3
• Replaces original psu
• High quality Rubycon capacitors
• 6000uF capacitance
• High quality Panasonic PPS capacitors
• High quality low inductance coils
• Improves audio
• Removes EMI / RFI from inside Node

Installation guide
